Daimler Truck is entering the next development phase of its fuel cell trucks. After a rigorous testing phase on the test track and public roads, the Mercedes-Benz GenH2 Trucks have now reached an advanced development stage for deployment in the first customer fleets.
The company’s objective is to offer only new vehicles that are CO2-neutral in driving operation across its global core markets (EU30, USA, Japan) by 2039. Hydrogen-based drive technologies can thereby be an optimal solution, especially for very flexible and particularly demanding applications in heavy-duty and long-distance haulage.
On July 25, at the Daimler Truck Test and Development Center in Woerth am Rhein, Martin Daum, Chairman of the Board of Management of Daimler Truck, celebrated the start of the initial customer trials of five Mercedes-Benz GenH2 Truck fuel cell prototype trucks in the presence of Hildegard Müller, President of the German Association of the Automotive Industry (VDA), with Air Products, Amazon, Holcim, INEOS and Wiedmann & Winz.

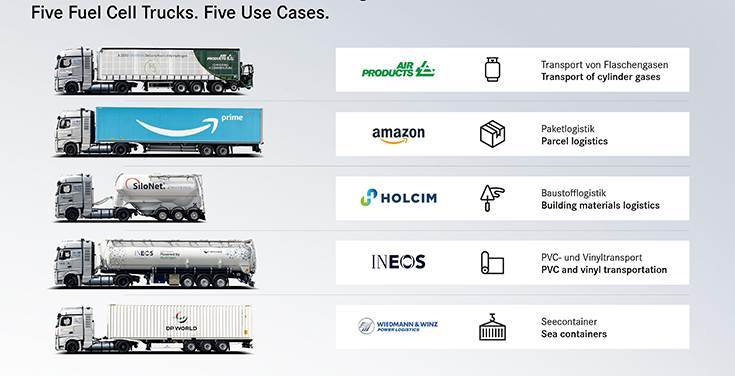

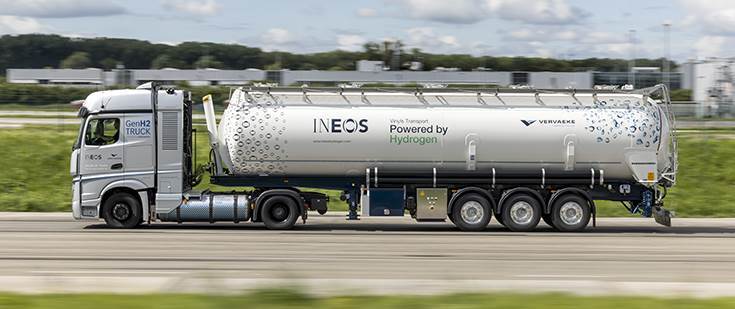

The five semi-trailer tractors will be used in various long-haul applications throughout the trial period. Amazon will use the GenH2 Truck in its logistics operations in Germany, Air Products for the transport of cylinder gases, Wiedmann & Winz for sea containers, Holcim for building materials logistics, and VERVAEKE – the logistics company of INEOS – for PVC and vinyl transportation.
These customers have the opportunity to gain practical experience in long-distance transport with fuel cell trucks at an early stage, during a trial phase of around one year. On the other hand, the Daimler Truck development team acquires valuable insights into the real-life operations of trucks powered by liquid hydrogen, learns about specific customer requirements and can take them into account for series development.
The five GenH2 Trucks will be deployed in different long-haul applications on specific routes in Germany, such as the transport of building materials, sea containers or cylinder gases. During these first customer trials the vehicles will remain under the direct supervision and responsibility of the manufacturer. The trucks will be refuelled at the designated liquid hydrogen filling stations (sLH2) in Woerth am Rhein (Rhineland-Palatinate) and in future also in the Duisburg area (North-Rhine Westphalia).
GenH2 Truck performance comparable with conventional long-haul trucks
The development engineers of Daimler Truck have based the GenH2 Truck on the characteristics of the conventional Mercedes-Benz Actros long-haul truck in terms of payload, range and performance. The Mercedes-Benz GenH2 Trucks, which are used in these first customer trials, offer a payload of around 25 tons at a gross combination weight (GCW) of 40 tons.
Two special liquid hydrogen tanks and a powerful fuel-cell system by cellcentric, the Joint Venture of Daimler Truck and Volvo Group, enable the high payload and long range. They represent the centrepiece of the GenH2 Truck.
The fuel-cell system of the GenH2 Truck delivers 300 kilowatts (2 x150 kW) and the battery provides an additional 400 kW temporarily. At 70 kWh, the storage capacity of the battery is relatively low, as it is not intended to meet energy needs, but mainly to be switched on to provide situational power support for the fuel cell, for example during peak loads while accelerating or while driving uphill fully loaded. At the same time, the relatively light battery allows a higher payload. It is recharged with braking energy and excess fuel-cell energy. A core element of the sophisticated operating strategy of the fuel-cell and battery system is a cooling and heating system that keeps all components at a suitable operating temperature, thus ensuring maximum durability. In a pre-series version, the two electric motors are designed for a total of 2 x 230 kW continuous power and 2 x 330 kW maximum power. The GenH2 Truck thereby delivers a torque of 2 x 1,577 Nm or 2 x 2,071 Nm.
The two stainless-steel liquid-hydrogen tanks of the GenH2 Truck have a particularly high storage capacity of 88 kilograms (44 kg each), perfectly suited for covering long distances. The stainless-steel tank system consists of two tubes, one within the other, that are vacuum isolated and connected to each other.
Liquid hydrogen enables a range of over 1,000km
Daimler Truck prefers liquid hydrogen in the development of hydrogen-based drives. In this aggregate state the energy carrier has a significantly higher energy density. As a result, more hydrogen can be carried, which significantly increases the range and enables comparable performance of the vehicle with that of a conventional diesel truck.
Transportation efforts can be significantly reduced with liquid hydrogen, and liquid hydrogen tanks also offer advantages in terms of cost and weight compared to compressed gaseous hydrogen. Thus, the use of liquid hydrogen enables a higher payload. This makes the Mercedes-Benz GenH2 Truck just as suitable for flexible and demanding long-haul road transportation as conventional diesel trucks. In September 2023, Daimler Truck successfully demonstrated this when a public road approved prototype of the Mercedes-Benz GenH2 Truck completed the #HydrogenRecordRun, covering 1,047 km with one tank filling of liquid hydrogen on board.
